Hamamatsu S11510 CCD Detector High Dynamic Range Spectrometer for Perfect Area Array

Warranty : 1 year

Customized support : OEM, ODM

Place of Origin : Zhejiang, China

Brand Name : YIXIST

Model Number : YSM-8102-03

Size : 140mm x 110mm x 46mm

Weight : 0.7 Kg, 0.7Kg

Wavelength Range : 200 nm-1100 nm

Model : YSM-8102-03

Dimension : 140mm * 110mm * 46mm

Optical resolution : Up to ~0.1nm (determined by the grating and slit)

Fiber connector : SMA905

Detector : Hamamatsu S11510 area array back-illuminated CCD

Pixel : 2048*64 pixels, pixel size 14um*14um

Signal to noise ratio : 800:1

Dynamic range (Single) : 50000:1 (typical value)

Price : $5,162.00/pieces >=1 pieces

MOQ : 1 unit

Contact Now

Hamamatsu S11510 CCD Detector High Dynamic Range Spectrometer for Perfect Area Array
PRODUCT OVERVIEW
YSM-8102-03 series spectrometers adopt a high-resolution optical-mechanical platform and a Hamamatsu S16010 2048 × 64-pixel area array CCD. They are featured with a high optical resolution (up to 0.1nm), a high S/N ratio (up to 800:1), a high dynamic range (up to 50000:1), and a high sensitivity in the range of 700-1100nm, which make them ideal for NIR laser spectrum analysis. With alterable gratings and slits, YSM-8102-03 can adjust to the different spectral ranges and optical resolutions in Raman spectrum measurements and can better suffice for both industrial and scientific needs.
The wavelength response range of this area array back-illuminated CCD detector is 200nm-1100nm. YSM-8102-03 series spectrometer can be equipped with different slits, gratings and other components within this wavelength range, and it can also be customized for different wavelength ranges and optical resolutions. At the same time, this spectrometer supports multiple trigger methods, multiple communication methods and secondary development, and can provide a full range of in-depth customization services.

Feature

Hamamatsu S16010 2048 x 64- pixel area array CCD. Linear variable filter or long wave pass filter to eliminate secondary and advanced diffractions. SMA905 fiber connector for easy connection. Customizable wavelength range and opticalresolution. Excellent sensitivity to 700nm-1100nm.USB 2.0 data transfer and power supply. Support USB2.0, RS232, RS485 modes. Real-time display of peak wavelength and FWHM. Support OEM and in-depth customization.

Application

Raman spectrum
FluorescenceLaser’s
CWL and line width
700-1100nm weak spectral measurement
MODEL LIST
Hamamatsu S11510 CCD Detector High Dynamic Range Spectrometer for Perfect Area Array
*Other wavelength ranges and resolutions can be customized.
*Cylinder lenses can be added to some models to increase the sensitivity.
PRODUCT SPECIFICATIONS
Model
YSM-8102-03
Dimension
140mm×110mm×46mm
Detector Wavelength Range
200 nm-1100 nm
Optical System Wavelength Range
Determined by the grating
Optical Resolution
Up to ~0.1nm (determined by the grating and slit)
Fiber Connector
SMA905
Detector
Hamamatsu S11510 area array back-illuminated CCD
Pixel
2048×64 pixels, pixel size 14µm×14µm
Signal to Noise Ratio
800:1
Linearity
>99%
Stray light
<0.1%（600nm）
A/D resolution
16bit
Integration Time
1ms-10s
Dynamic Range
50000:1 (typical value)
Triggers
Software trigger, hardware trigger, synchronous trigger
Power Consumption
5VDC ,500mA
Operating Temperature
5℃-35℃ (recommended temperature 25℃)
Communication Interface
USB2.0, RS232/RS422
Operating System
Win XP, Win 7, Win 8, Win10
Power Supply
USB

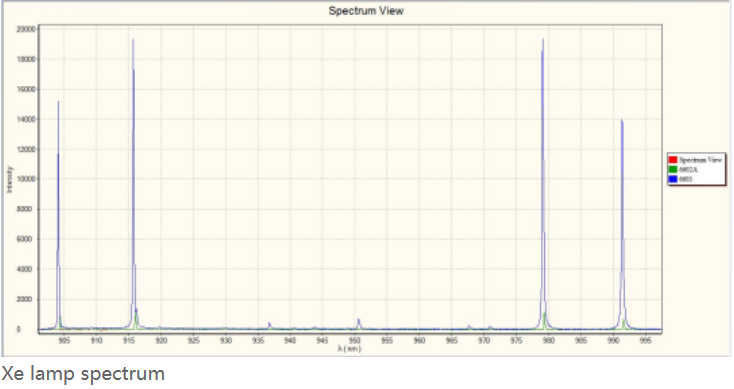

TYPICAL TESTING
Hamamatsu S11510 CCD Detector High Dynamic Range Spectrometer for Perfect Area Array
Hamamatsu S11510 CCD Detector High Dynamic Range Spectrometer for Perfect Area Array
RELATED ACCESSORIES
Hamamatsu S11510 CCD Detector High Dynamic Range Spectrometer for Perfect Area Array
Fiber
Hamamatsu S11510 CCD Detector High Dynamic Range Spectrometer for Perfect Area Array
Light Source
Hamamatsu S11510 CCD Detector High Dynamic Range Spectrometer for Perfect Area Array
Sample Holder
COMPANY PROFILE
Hamamatsu S11510 CCD Detector High Dynamic Range Spectrometer for Perfect Area Array
YIXI Smart Technology (YIXIST) Co., Ltd.
YIXIST is an innovative technology enterprise based on advanced optical measurement technology, which is determined to become the best supplier and advanced technology provider in the intelligent equipment manufacturing industry to create the greatest value for customers globally.
Hamamatsu S11510 CCD Detector High Dynamic Range Spectrometer for Perfect Area Array
Hamamatsu S11510 CCD Detector High Dynamic Range Spectrometer for Perfect Area Array
Hamamatsu S11510 CCD Detector High Dynamic Range Spectrometer for Perfect Area Array
Hamamatsu S11510 CCD Detector High Dynamic Range Spectrometer for Perfect Area Array
Currently we're working with hunderds of well known universities and research institutions in China and are actively involved in offline events as Education Seminars and Exhibitions.
Hamamatsu S11510 CCD Detector High Dynamic Range Spectrometer for Perfect Area Array
Hamamatsu S11510 CCD Detector High Dynamic Range Spectrometer for Perfect Area Array
Hamamatsu S11510 CCD Detector High Dynamic Range Spectrometer for Perfect Area Array
Hamamatsu S11510 CCD Detector High Dynamic Range Spectrometer for Perfect Area Array
