YIXIST YOA-8406 Spectral Transmittance Measuring Instrument 200-1700nm Wavelength Range

Name: YIXIST YOA8406 Spectral Transmittance Measuring Instrument 2001700nm Wavelength Range
Brand: YIXIST
Price: 3 USD

Warranty : 1 year

Customized support : OEM, ODM

Place of Origin : Zhejiang, China

Brand Name : YIXIST

Model Number : YOA-8406

Wavelength Range : Customizable within 200-1700nm

Model : YOA-8406

A/D : 16bit

Optical resolution : ~2nm(According to the configuration)

Tungsten lamp life : 2000hours(Typical)

Stability : ±0.5%

Measuring range : 1%-100%

Wavelength accuracy : ±0.34nm

Communication interface : USB2.0

Power supply : 15VDC,3A

Price : $3,392.00/packs >=1 packs

MOQ : 1 unit

Contact Now

YIXIST YOA-8406 Spectral Transmittance Measuring Instrument 200-1700nm Wavelength Range

PRODUCT OVERVIEW

YOA-8406 series is mainly used for fast spectral transmissivity measurement of flat and curved samples. Meanwhile, it can display the transmissivity curve and FWHM in real-time. YOA-8406 series provides CMOS, CCD, and InGaAs detector versions and supports wavelength range customization within 200-1700nm. A secondary development kit enables user integration and development.

Feature

CMOS, CCD and InGaAs detector versions are available. Support in-depth customization in the range of 200-1700nm. Intelligent software design, easy to use. Support system integration and secondary development.

Application

Transmissivity of filter and optical lens Transmissivity of curved-edge IR apertures, coated mirrors,glued mirrors, and parallel plates

PARTS LIST

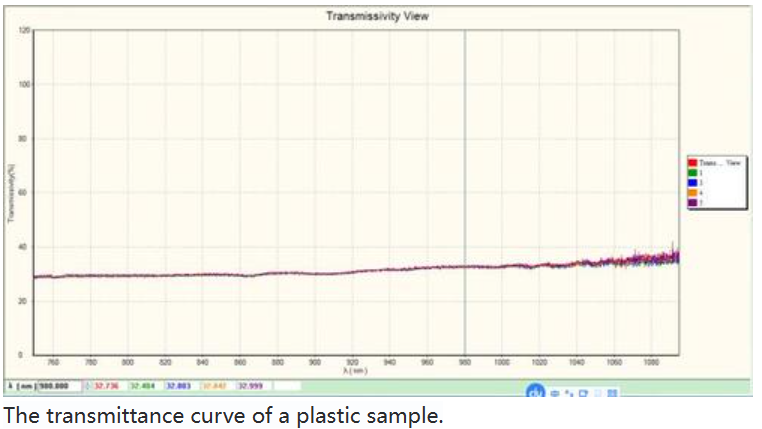

TYPICAL TESTING

RELATED ACCESSORIES

Deuterium Tungsten light source‍

Spectrometer

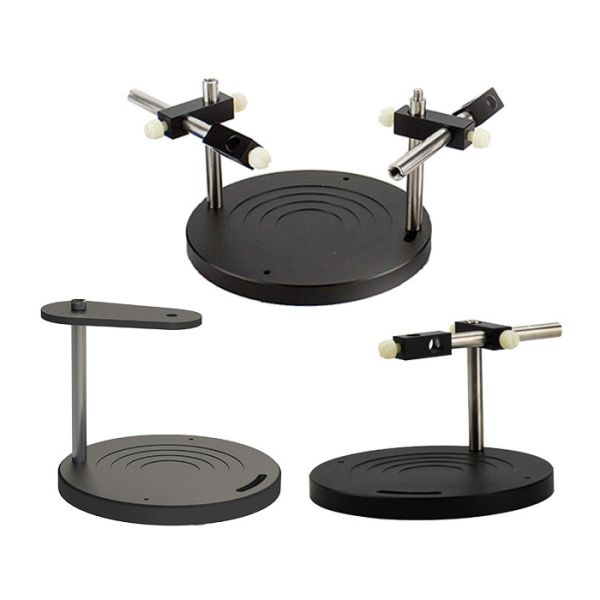

Stage
